Anti-slip Rubber Conveyor Belt , Chevron Conveyor Belt, EP800 4 Ply Corrugated Sidewall Belt
EP conveyor belt
EP conveyor belt ( polyester conveyor belt) is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and good elasticity. Conveying small and not large massiveness materials, meanliness materials and biscuit materials. Applicable for conveying long and not very long distance materials, weight materials and materials that is vey long and its sliding rate is very fast.
Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it's the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance,heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Structure:
It uses polyester canvas as carcass, its structure is the same as General-used Conveyor Belt.
Standards:
GB/T7984-2001, DIN22102,
BS490, AS1332, RMA,
JISK6322, SABS1173 etc.
Types:
Besides General-used EP conveyor belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.
What is the Main Technical Data for EP/NN/CC Conveyor Belt?
| Total Tensile Strength (N/mm) | Fabric Type | No.of Fabric plies | Width (mm) | Length | Top Cover Thickness(mm) | Bottom Cover Thicknes(mm) |
| 200-800 | EP100 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 315-1250 | EP150 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 400-1500 | EP200 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 500-2000 | EP250 | 2-10 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 500-2000 | EP300 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 500-2000 | EP400 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 |
| 630-2500 | EP500 | 2-6 | 350-2000 | 10-400 | 2-12 | 1-5 |
| | EP600 | 2-6 | 350-2000 | 10-400 | 2-12 | |
Product Tags:
|
|

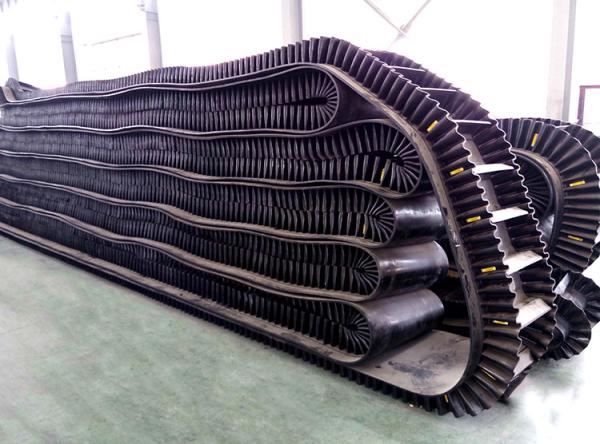

Anti Slip Rubber EP800 4 Ply Corrugated Sidewall Belt , Mobile Conveyor System Images
|
